Understanding Power Flow: The Lifeline of the Electric Grid

Introduction

The modern electric grid is a dynamic network connecting generation sources to millions of consumers through transmission and distribution systems. Managing this complex network efficiently requires an in-depth understanding of how electricity flows: a concept known as power flow or load flow. Power flow studies are foundational for planning, operating, and optimizing power systems[5]. They provide the visibility and insights needed to ensure electricity is delivered reliably, safely, and economically from generation plants to your wall socket.

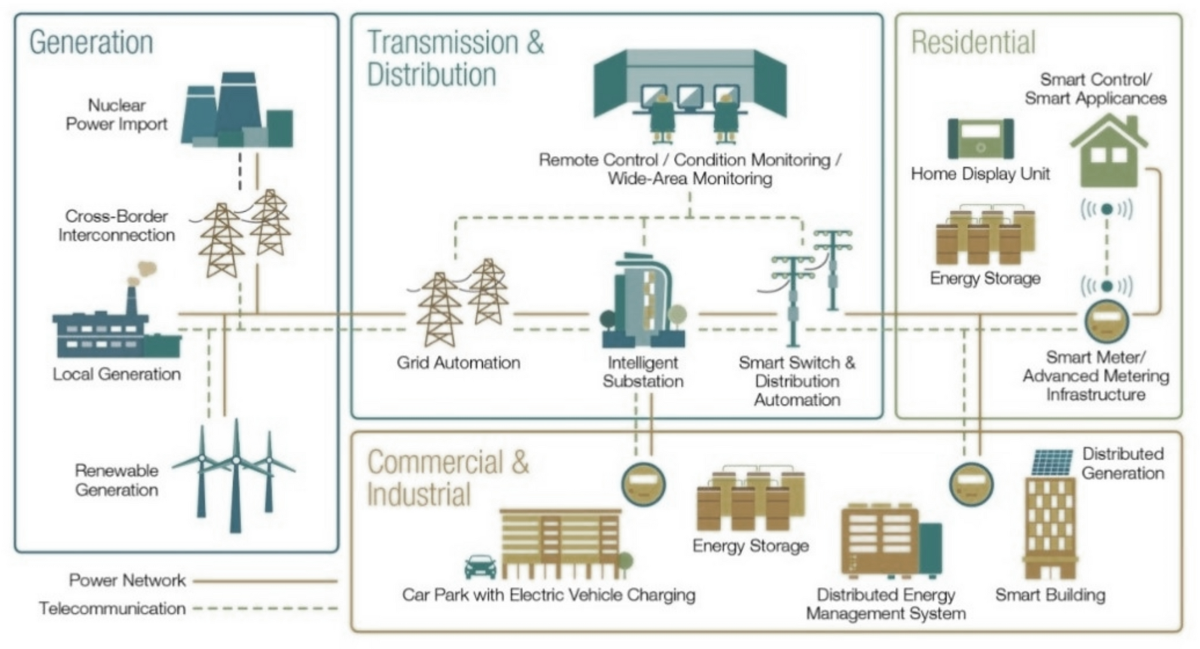

The picture below shows three major components of electrical systems: Generation, Transmission, and Distribution Systems.

What Value Does Power Flow Provide?

Power flow analysis provides the electrical equivalent of a health checkup for the grid. It helps engineers determine the steady-state voltage, current, and power in every part of the system under normal and contingency conditions.[1]

Normal and contingency conditions: Normal conditions represent the grid operating with all equipment in service, while contingency conditions evaluate system performance following credible outages such as the loss of a line, transformer, or generator.

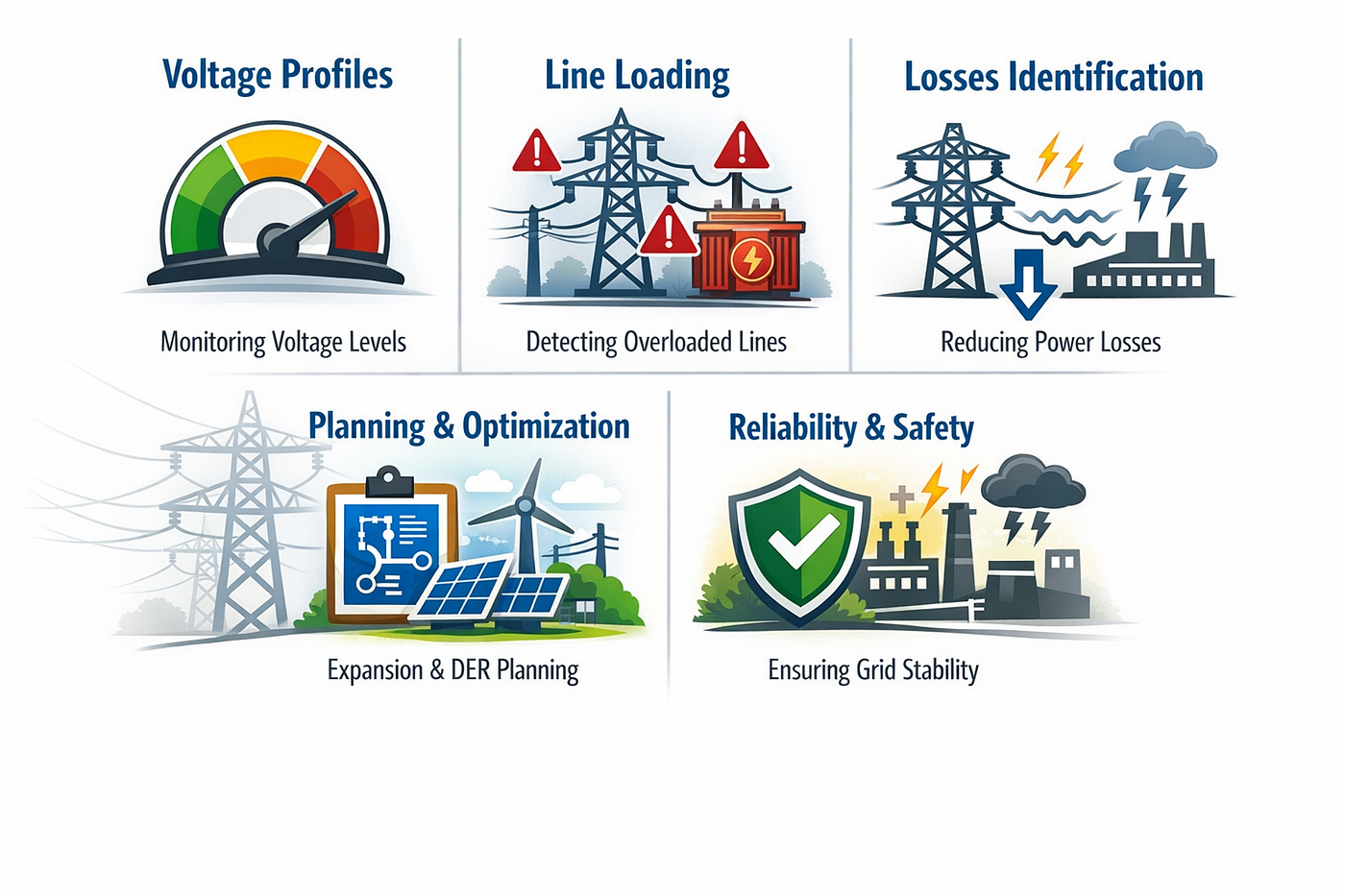

Some key values and insights include:

Voltage Profiles: Identifies whether system voltages are within acceptable limits.[7]
Line Loading: Detects overloaded lines or transformers, increasing outage risk.
Losses Identification: Quantifies real and reactive power losses, helping utilities minimize inefficiencies.[2]
Planning and Optimization: Supports expansion planning, DER (Distributed Energy Resource) integration, and operational scheduling.[3]
Reliability and Safety: Ensures the grid operates within safe boundaries even under unexpected conditions.

In essence, power flow studies act as the foundation for decision-making across the utility ecosystem — from transmission system operators managing high-voltage networks to distribution planners preparing for a future rich in Distributed Energy Resources (DERs).[9]

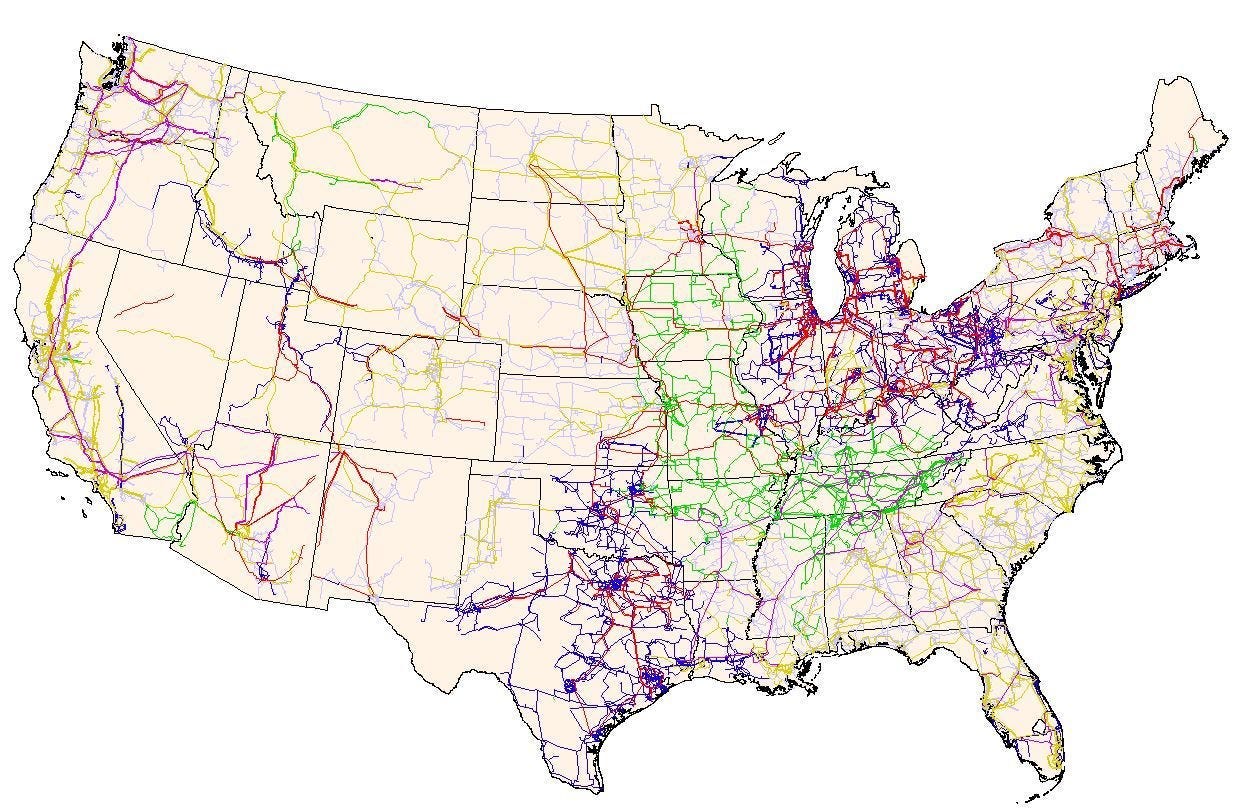

Transmission Power Flow

In the transmission system, power flow focuses on large-scale, high-voltage energy transfer between generation stations and substations. The goal is to maintain system stability and reliability across vast geographic areas.

Key objectives include:

Maintaining voltage levels at substations and generation buses.
Ensuring transmission lines are not thermally overloaded.
Analyzing contingency scenarios (N-1, N-2) to maintain reliability.
Supporting market operations by assessing congestion and pricing zones.

Transmission power flow calculations often use methods like Newton-Raphson or Fast-Decoupled Load Flow, which provide precise results for large-scale systems. The results feed into Energy Management Systems (EMS) for real-time operations, stability assessment, and control decisions.[1]

When integrated with renewable generation forecasts, transmission power flow tools can predict how solar, wind, and intertie exchanges affect grid stability — allowing operators to anticipate and manage variability effectively.

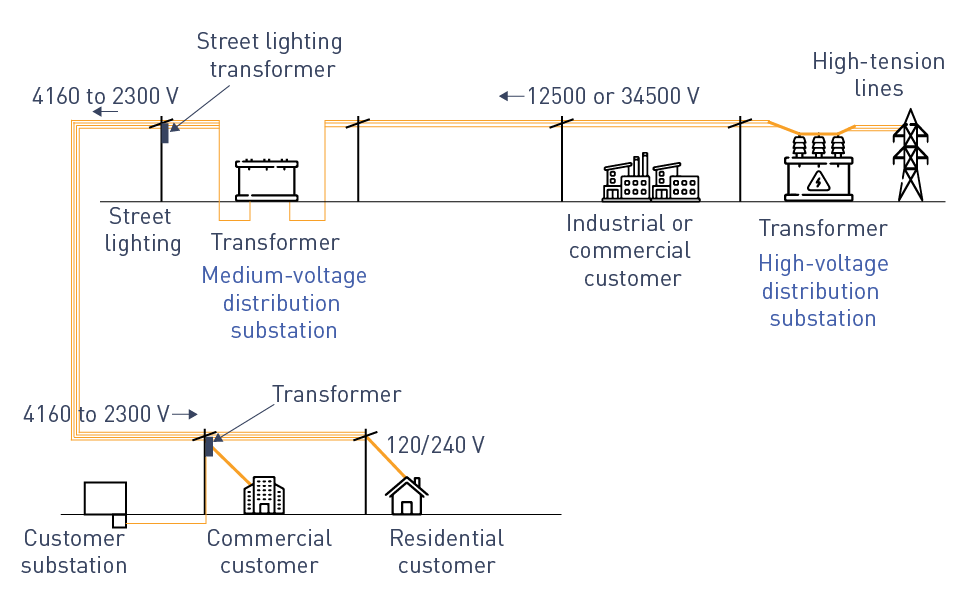

Distribution Power Flow

The distribution system represents the last mile of electricity delivery — where power is stepped down and routed through feeders to homes, businesses, and industries. Unlike transmission systems, distribution networks are radial or weakly meshed, making their power flow analysis more complex due to unbalanced and phase-dependent loads.

Radial or weakly meshed: A network structure in which power typically flows along a single main path from the source to the loads, with limited alternative paths for redundancy.

Distribution power flow studies aim to:

Analyze feeder voltages, losses, and load balances.
Support DER hosting capacity and interconnection studies. DER hosting capacity and interconnection studies: Analyses used to determine how much distributed energy resources a grid can safely accommodate without violating voltage, thermal, protection, or reliability limits.
Optimize capacitor placement, voltage regulation, and tap operations.
Enable feeder reconfiguration during fault or maintenance conditions.

Advanced Distribution Management Systems (ADMS) use real-time distribution power flow analysis to monitor grid health, manage outage restorations, and optimize voltage/VAR operations. With the rapid integration of rooftop solar, smart inverters, and electric vehicles, unbalanced three-phase power flow analysis has become crucial for modern grid planning.

Operations-Related Power Flow: ADMS and EMS Integration

In daily operations, power flow is not just a planning tool — it’s a decision engine.

For Transmission Operations, power flow models are embedded within Energy Management Systems (EMS) to provide real-time situational awareness. Operators use these models for:

Contingency analysis.
Optimal power dispatch.
Reactive power and voltage control.
Real-time state estimation.

For Distribution Operations, Advanced Distribution Management Systems (ADMS) perform similar roles on a smaller, more granular scale. They combine real-time SCADA data (used widely on the grid), GIS models, and power flow engines to:

Detects voltage violations.
Optimize DER dispatch for local peak shaving.
Support fault location, isolation, and service restoration (FLISR).
Run “what-if” scenarios to guide field crews during switching operations.

With the evolution of DER orchestration and microgrid control, the boundary between EMS and ADMS power flow functionalities is blurring. The next-generation Integrated Grid Management Systems will use unified power flow engines capable of modeling both transmission and distribution networks in near real-time.

Real-Time Simulation

Real-time simulation platforms such as RTDS, Typhoon HIL, and PSCAD are increasingly central to validating DERMS control logic and grid interoperability requirements defined by IEEE 1547. These platforms enable hardware-in-the-loop (HIL) and controller-in-the-loop (CIL) testing, where actual inverter controllers, DER gateways, or DERMS dispatch algorithms are exercised against a high-fidelity, real-time power flow and electromagnetic model of the distribution network. Utilities use these workflows to verify IEEE 1547 functions such as voltage and frequency ride-through, reactive power control, volt-VAR and volt-Watt behavior, and abnormal condition response before field commissioning. By embedding DERMS optimization outputs into real-time simulations, operators can validate dispatch feasibility, protection coordination, and system impacts under high DER penetration, ensuring that advanced DER orchestration strategies translate safely from software models to real-world grid operations.[12]

Hardware-in-the-Loop (HIL): A testing approach where real physical devices (such as inverters or protection relays) are connected to a real-time power system simulator to validate their behavior under realistic grid conditions before field deployment.
Controller-in-the-Loop (CIL): A testing approach where control algorithms or software controllers (such as DERMS or ADMS logic) are executed in real time against a simulated power system to verify control performance without using physical hardware.

HIL-based real-time simulation bridges the gap between DERMS optimization and IEEE 1547-compliant field deployment.

Conclusion

Power flow analysis remains the backbone of both power system planning and real-time operations, enabling utilities to understand how electricity moves across transmission and distribution networks under a wide range of conditions. As grids evolve with increasing penetration of distributed energy resources, electric vehicles, and inverter-based technologies, traditional offline power flow studies alone are no longer sufficient.

Modern grid operations now rely on a tightly integrated ecosystem that combines power flow engines, DERMS optimization, and real-time simulation platforms. Real-time digital simulators and HIL environments allow utilities to validate IEEE 1547-compliant inverter behavior, DER dispatch strategies, and protection coordination before deployment — bridging the gap between analytical models and field reality. This added layer of validation reduces operational risk, improves confidence in automation, and accelerates the safe adoption of advanced grid controls.

Looking ahead, the convergence of planning-grade power flow (CYME, SYNERGI), operational ADMS/DERMS analytics, and real-time simulation-based validation will define next-generation grid management. Utilities that embed these capabilities into their workflows will be better positioned to operate resilient, flexible, and reliable power systems. This will enable them to have deep electrification (EV adoption) and a distributed, decarbonized energy future.
